WBH1514BD

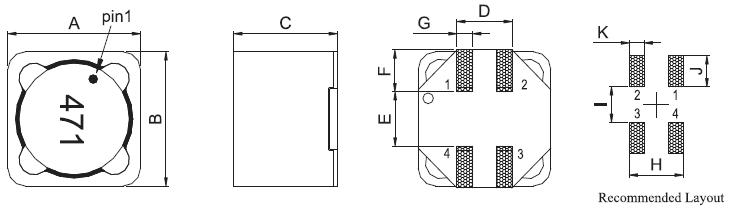

A ±0.5 | B ±0.5 | C ±0.3 | D Nom. | E Nom. | F Nom. | G Nom. | H Nom. | I Nom. | J Nom. | K Nom. | |
15.50 | 15.50 | 14.20 | 5.60 | 8.20 | 3.30 | 1.90 | 6.00 | 7.90 | 4.20 | 2.30 |
Part Number | Inductance LO(uH) | DCR (mΩ)Max. | SRF (MHz)Typ. | LK (uH)Typ. | Isat (A)Typ. | Irms1 (A)Typ. | Irms2 (A)Typ. | |
WBH1514BD-2R5M-R | 2.50 | 12.00 | 34.00 | 0.20 | 30.50 | 5.10 | 7.80 | |
WBH1514BD-4R7M-R | 4.70 | 14.00 | 25.00 | 0.20 | 23.70 | 4.50 | 7.60 | |
WBH1514BD-100M-R | 10.00 | 18.00 | 16.50 | 0.40 | 16.20 | 4.00 | 6.80 | |
WBH1514BD-120M-R | 12.00 | 22.00 | 14.50 | 0.40 | 14.80 | 3.70 | 6.60 | |
WBH1514BD-150M-R | 15.00 | 28.00 | 11.00 | 0.42 | 13.30 | 3.40 | 5.80 | |
WBH1514BD-220M-R | 22.00 | 36.00 | 10.00 | 0.45 | 11.00 | 3.00 | 5.10 | |
WBH1514BD-270M-R | 27.00 | 39.00 | 8.50 | 0.45 | 9.90 | 2.95 | 4.70 | |
WBH1514BD-330M-R | 33.00 | 52.00 | 7.20 | 0.45 | 9.00 | 2.55 | 3.90 | |
WBH1514BD-470M-R | 47.00 | 75.00 | 5.60 | 0.55 | 7.50 | 2.20 | 3.45 | |
WBH1514BD-680M-R | 68.00 | 90.00 | 5.20 | 0.55 | 6.20 | 2.00 | 3.20 | |
WBH1514BD-101K-R | 100.00 | 126.00 | 3.80 | 0.55 | 5.15 | 1.65 | 2.50 | |
WBH1514BD-221K-R | 220.00 | 287.00 | 2.30 | 0.70 | 3.50 | 1.10 | 1.70 | |
WBH1514BD-331K-R | 330.00 | 367.00 | 2.10 | 0.80 | 2.83 | 0.98 | 1.55 | |
WBH1514BD-471K-R | 470.00 | 550.00 | 1.65 | 1.20 | 2.40 | 0.77 | 1.30 | |
WBH1514BD-102K-R | 1000.00 | 1250.00 | 1.10 | 2.00 | 1.63 | 0.55 | 0.77 |
